VW Golf Citystromer, tipo 1HX0E, Hatchback, Electric-Motor, 0 ccm, 20 KW, 27 HP, 100 kmph, 1994 to  1997

SIEMENS CHARGER TYPE 1000-1 FROM VOLKSWAGEN GOLF A3 City Stromer.

IN GERMAN SIEMENS BORDLADEGERAT TYP 1000-1

Dear friends WORLDWIDE,

Can any one worldwide help in finding data sheet AND ELECTRONIC DIGRAM for this
SIEMENS Lead / Acid Battery Charger for Volkswagen Golf A 3 with Motorola MC68HC11E1FN chip.

This charger is manufactured in SIEMENS factory in Toulouse, France...

SIEMENS CHARGER IN ENGINE SPACE of  VOLKSWAGEN GOLF A3



SIEMENS CHARGER IN ENGINE SPACE of   VOLKSWAGEN GOLFA3



SIEMENS CHARGER BACK SIDE

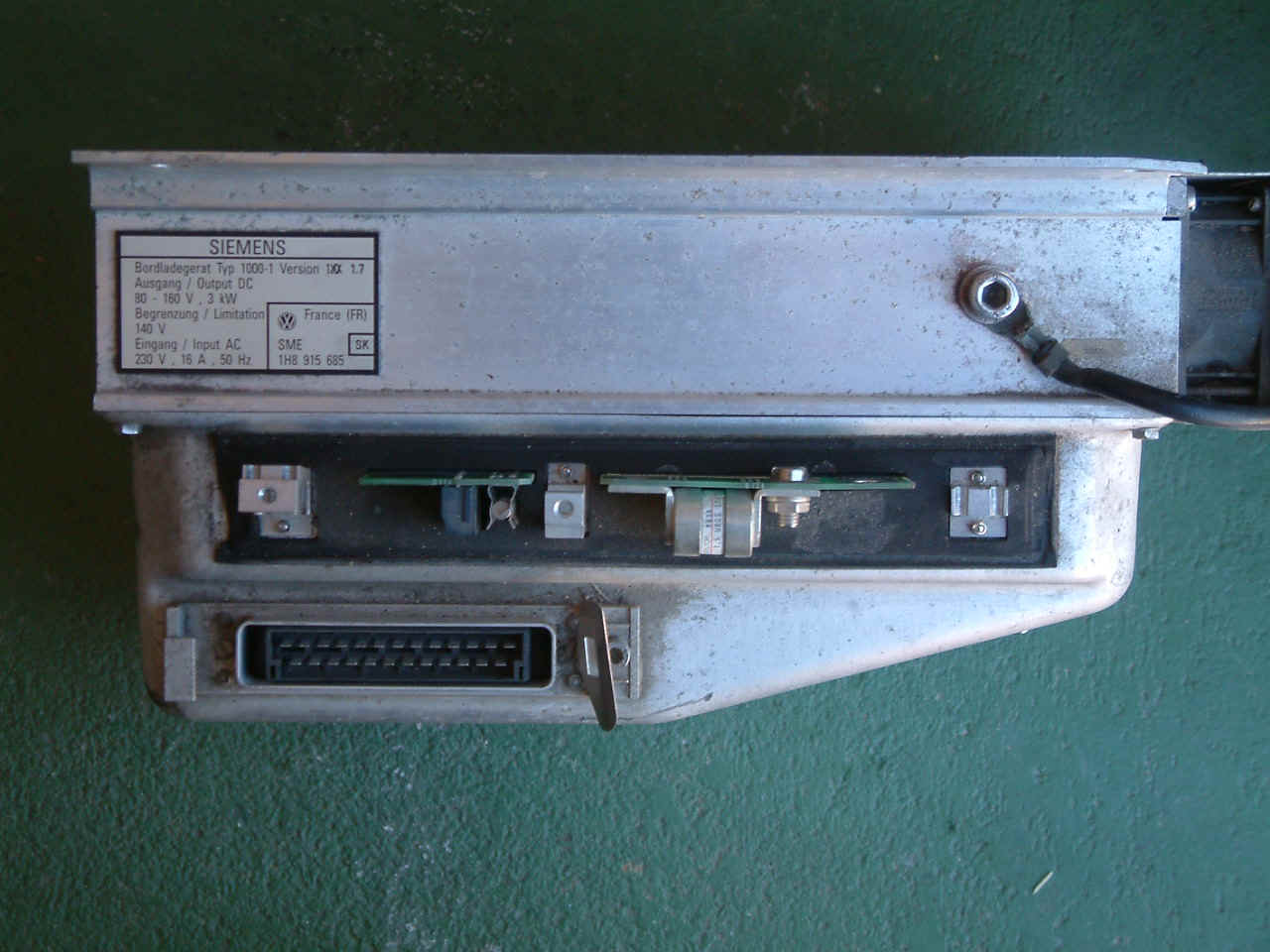

CHARGER WITH VISIBLE 25 PIN OUTSIDE CONNECTOR AND LABEL

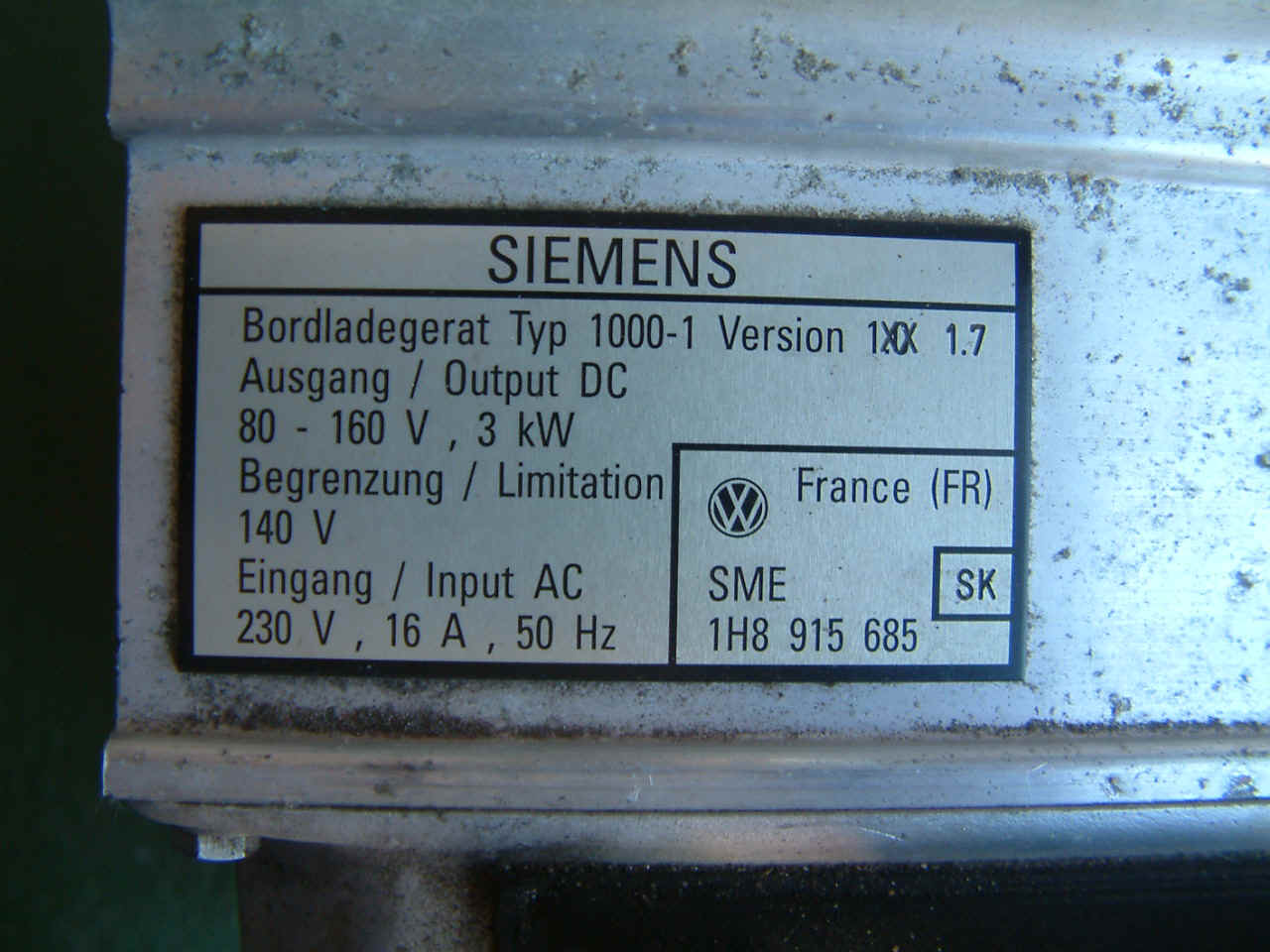

SIEMENS, FRANCE  LABEL DATA,  SME 1H8 915 685



CHARGER FROM INSIDE - I NEED ELECTRONIC DIAGRAM FOR THIS UNIT.

The 68HC11 is a powerful 8-bit data, 16-bit address programmable microcontroller from Motorola with an instruction set that is similar to the older 68xx (6801, 6805, 6809) parts.  Depending on the variety, the 68HC11 has built-in EEPROM/OTPROM, RAM, digital I/O, timers, A/D converter, PWM generator, and synchronous and asynchronous communications channels (RS232 and SPI).  Typical current draw is less than 10 ma.

SIEMENS CHARGER WITH MC68HC11E1FN CONTROLLER

INFO DATA

Architecture

CPU has two 8 bit accumulators (A & B) that can be concatenated to provide a 16 bit double accumulator (D). Two 16 bit index registers are present (X,Y) to provide indexing to anywhere in the memory map. Having the two index registers means the 68hc11 is very good for processing data. Although an eight bit processor, the 68hc11 has some 16 bit instructions (add, subtract, 16 * 16 divide, 8 * 8 mulitply, shift, and rotates). A 16 bit stack pointer is also present, and instructions are provided for stack manipulation. Typically multiplexed address and data bus.

Onboard subsystems

Timer - Main timer system comprises of a single 16 bit counter clocked at the E clock (2,3,or 4 Mhz - there is a programmable prescaler to slow it down if required). From this single counter run a number of input capture and output compare registers (3-4 IC, 5 - 4 OC). The IC and OC functions are very versatile, and pulses as short as 1 E clock can be generated. A-D Convertor - Typically 8 channel 8 bit A/D, although the G5 has a 10 bit A/D.

Serial Communications Interface (SCI) - Asynchronous serial communications; Data format - 1 Start, 8 or 9 data, and one stop bit. Data rate - 150 - 312500 Baud (312500 is using 4 mhz E clock)

Serial Peripheral Interface (SPI) - Synchronous serial communications, comprises CLK, DATA IN, DATA OUT and optionally chip selects. As well as using specific SPI devices, it is very easy to expand IO using the SPI and standard logic devices (e.g. 74HC595 and 74HC165).

The following are Motorola details:

HC11 A Series: 8K ROM (A8), ROMless (A0,A1), 256 RAM, 512 EEPROM (A1,A8), SPI, SCI, 3 IC 5 OC, 8 channel 8 bit A/D HC11 C0 Series: Nice new device developed together with AT&T. ROMless, on board bank switching to support memory maps of up to 256K. Totally glueless interface - Chip selects on board, Read Enable and Write Enable signals now generated on chip. 256 RAM, 8 channel 8 bit A/D.

HC11 D Series: Smallest and lowest cost member of the hc11 Family. ROMless (D0), 4K ROM (D3), 4K EPROM (711D3) - No A-D or EEPROM. Still has standard timers and serial ports

HC11 E Series is used in this Siemens charger: Same as A series execpt 512 bytes RAM and 512 EEPROM (2048 for E2). Pin compatible, only difference is one timer pin (PA4) can now be used for IC or OC instect of just OC. Also have EPROM devices and larger memory - HC711E9 (12K OTP), HC711E20 (20K OTP)

MC68HC11E1FN DATA

ABOVE



HC11 F series ROMless, non multiplexed address/data bus with 4 chip selects built in. 1K RAM, 512 bytes EEPROM - otherwise same peripheralsas E series HC11 G Series: 16K ROM/EPROM, Non mulitplexed address/data bus, 512 RAM, 4 channel PWM, 10 Bit A/D convertor, 2 separate 16 bit timers

HC11 K4 Series: 24K ROM/EPROM, 1Mb addressing using on chip memory mapping. Non multiplexed address and data bus. 4 programmable chip selects, 8 channel 8 bit A/D. 4 channel PWM, 768 bytes RAM

Toshiba second-sources the 68hc11, and they list the following variants: A0/A1/A8 and E0/E1/E9.

Web data about MC68HC11E1FN from web addres http://www.esacademy.com/automation/faq/68hc11/2.htm





HEAT SINK WITH CAPACITORS AND SIEMENS CHOKES

PLEASE HELP WITH INFORMATION ABOUT ELECTRONIC DIAGRAM FOR THIS CHARGER.

SIEMENS CHARGER WHEN IS OPEN

LEFT CONNECTOR HAS 25 PINS CONNECTED TO MAIN BOARD.

NEED WHAT IS PIN DATA NAME AT THIS CONNECTOR AND WHERE THEY CONNECTED INTO GOLF A3 CAR.

HERE IS WHAT I FOUND UNTIL NOW MEASURING WHAT IS CONNECTED TO THIS 25 PINS


WHICH PIN NUMBERS ARE KIND POWER ON and OFF SWITCH CONTROL
WHEN CHARGER IS PLUIG IN 220V AC POWER? There is main relay who doing this job.




J 367 STEUERGERAT - PROCESSOR

PIN 41, m WIRE FROM PROCESSOR TO CHARGER OUTSIDE CONNECTOR PIN 15

PIN 19, L WIRE FROM PROCESSOR TO CHARGER OUTSIDE CONNECTOR PIN 1

PIN 20, k WIRE FROM PROCESSOR TO CHARGER OUTSIDE CONNECTOR PIN 11  WHITE WIRE GO TO L9822E  PIN 2  pin name is OUT2

CABLE WIRE

WIRE G2/1 WIRE TO OUTSIDE CONNECTOR PIN 23 WHITE WIRE GO TO L9822E  PIN 3 pin name is OUT1

WIRE G2/11 WIRE TO OUTSIDE CONNECTOR PIN 22  WHITE WIRE GO TO L9822E  PIN 4 pin name is OUT0

OUTSIDE CONNECTOR PIN 21 WHITE WIRE GO TO L9822E  PIN 1 pin name is OUT3





L9822E IS OCTAL SERIAL SOLENOID DRIVER WITH RS-232 COMMUNICATIONS




( DB9 - RS 232 COMMUNICATION PORT ?) OUTSIDE CONNECTOR PIN 10 WIRE GO TO  MAX203 PIN 4  pin name is RS232 INPUT

( DB 9 - RS 232 COMMUNICATION PORT ?) OUTSIDE CONNECTOR PIN 9 WIRE GO TO MAX203 PIN 5  pin name is RS232 OUTPUT


WILL BE GREAT HELP IF I CAN GET FULL ELECTRONIC DIAGRAM FOR THIS CHARGER.




CHARGER PCB DATA


Sometimes resistor below orange relay VAC on batttery PCB  has a problem of resistance.
The battery charger in itself is a point construction of Siemens with a Cosinus Fi of 1!



LIST OF USED INTEGRAL CIRCUIT  AND DATA SHEET AS PDF FILE LINK BELOW

MC68HC11E1FN   -  MICRO CONTROLLER

MAX 203EWP -  +5V RS-232 TRANSCEIVERS WITH 0.1uF EXTERNAL CAPACITORS

5H11 - COMPLEMENTARY SILICON POWER TRANSISTOR

44H11 - COMPLEMENTARY SILICON POWER TRANSISTOR

IRFD120 - HEXFET POWER MOSFET

L9822E - OCTAL SERIAL SOLENOID DRIVER WITH RS-232 COMMUNICATIONS

LM2903M - DUAL DIFFERENTIAL COMPARATOR

LM317T - 3-TERMINAL ADJUSTABLE REGULATOR

LM2931AT - SERIES LOW DROPOUT REGULATOR

MC7812BT - THREE TERMINAL POSITIVE FIXED VOLTAGE REGULATOR

MTP4N80E - TMOS E-FET POWER FIELD RFFECT TRANSISTOR 4.0 AMPERES 800 VOLTS RDS(on) = 3.0 OHM

MC34151P - MC33151 - HIGH SPEED DUAL MOSFET DRIVER

MC34161 - UNIVERSAL VOLTAGE MONITOR

74HC08 - QUAD 2-input input  AND gate

74HC14 - HEX INVERTING SCHMITT TRIGGER

68HC68W1 - CMOS SERIAL DIGITAL PULSE WIDTH MODULATOR

REF02 - +5V PRECISION VOLTAGE REFERENCE

UC2842AN - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLER

UC2854DW - HIGH POWER FACTOR REGULATOR

EPROM 27C256 - 256K (32K x 8) CMOS EPROM

GAL16V8D-15LPI - High performance E2CMOS PLD in 20-pin DIP package.

PMI328 OP282G -  DUAL/QUAD LOW POWER, HIGH SPEED JFET OPERATIONAL AMPLIFIER

PMI PM219P  is same type LM219P, DUAL VOLTAGE COMPARATOR



DONORS OF DATA SHEETS FOR UNKNOWN PARTS IN THIS INVERTER

My friend Fidels Barbic introduce me with  Zoran Gluviscevic from Kiseljak. He send me aditional information as pdf file for PMI PM219P what is same type as LM219P, DUAL VOLTAGE COMPARATOR, thanks to Zoran.

Company VAC VACUUMSCHMELZE http://www.vacuumschmelze.de  manufacture this transformer for SIEMENS VDO Toulouse, thanks to Simone Swartz.

CLICK ON IMAGE TO SEE TECHNICAL DATA FOR THIS TRANSFORMER VAC T604402-X4940-X001H
