VW Golf Citystromer, tipo 1HX0E, Hatchback, Electric-Motor, 0 ccm, 20 KW, 27 HP, 100 kmph, 1994 to  1997

Dear friends WORLDWIDE,

Can any one worldwide help in finding data sheet AND ELECTRONIC DIAGRAM for this
ELECTRIC VOLKSWAGEN GOLF A3 CITY STROMER INSTRUMENTS PANEL CONNECTION WITH CHARGER AND INVERTER

GOLF A3 ELECTRIC INSTRUMENTS

VOLKSWAGEN GOLF A3 ELECTRIC INSTRUMENTS



GOLF_A3_ELECTRIC_INSTRUMENTS_CHARGING LAMPS.jpg (75477 bytes)

This small lamps can be defective. Battery preliminary heating, load cycle 1, load cycle 2, finished.

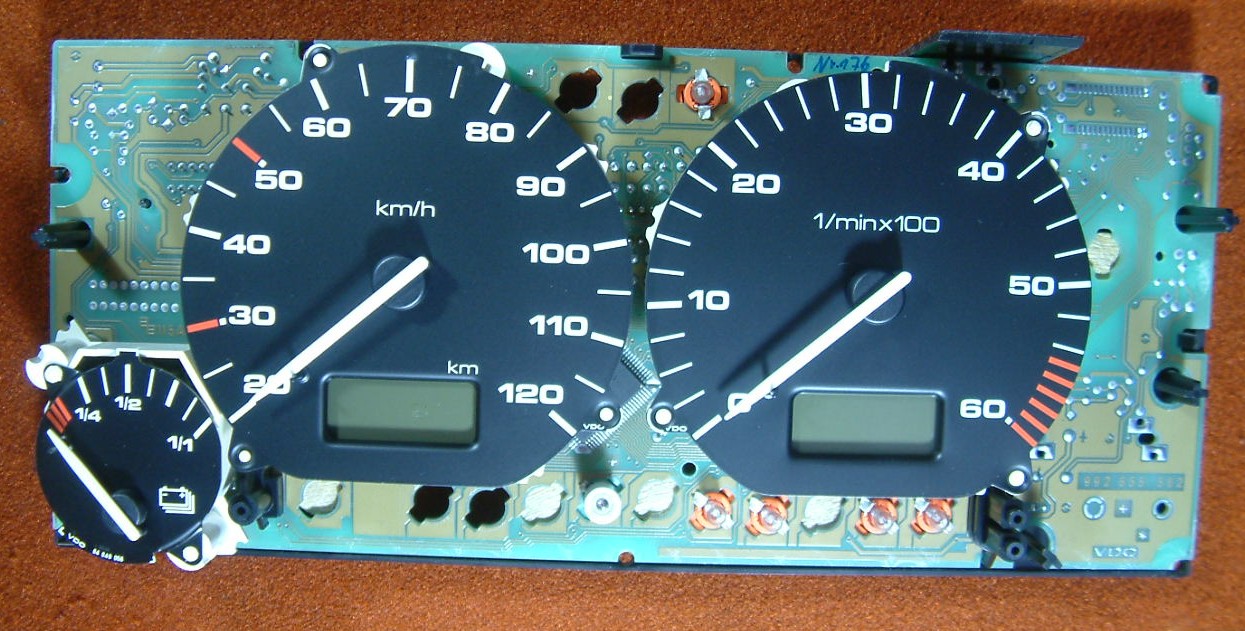

GOLF A3 ELECTRIC INSTRUMENTS PANEL PCB

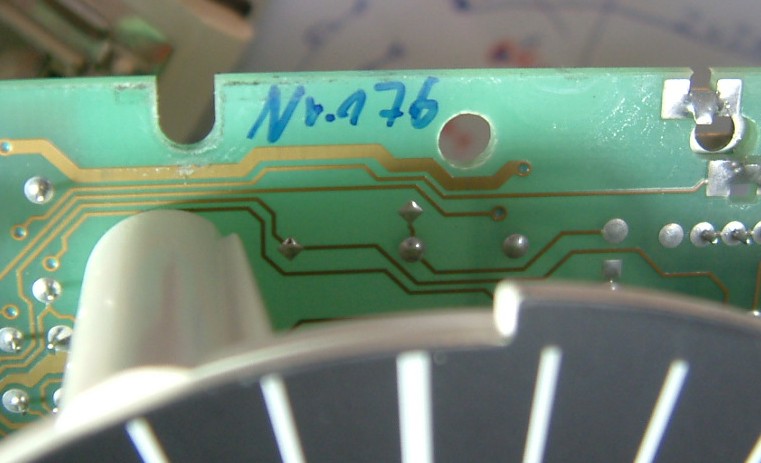

IS THIS WRITTEN NOTES 176 GOLF A3 INSTRUMENT FROM 200 MANUFCTURED



BELOW IS NEC D75308GF-J22  4-BIT SINGLE-CHIP MICROCOMPUTER WHICH DOING WHAT?

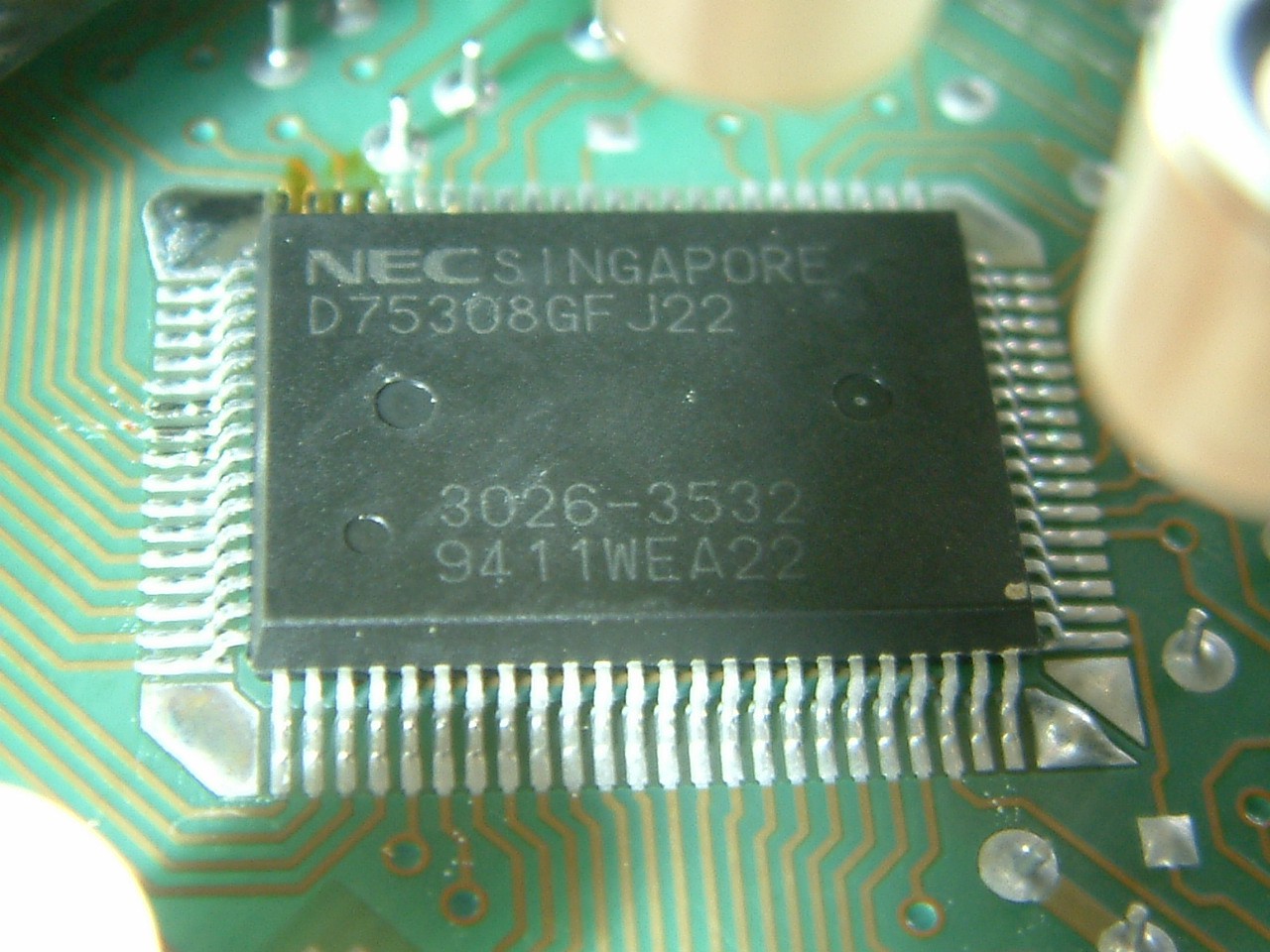

D75308GF-J22

NEC 4-BIT SINGLE-CHIP MICROCOMPUTER INSIDE ELECTRIC INSTRUMENT PANEL

USED INTEGRAL CIRCUIT  ON THIS SIDE OF PCB AND DATA SHEET AS PDF FILE LINK BELOW

NEC 4-BIT SINGLE-CHIP MICROCOMPUTER

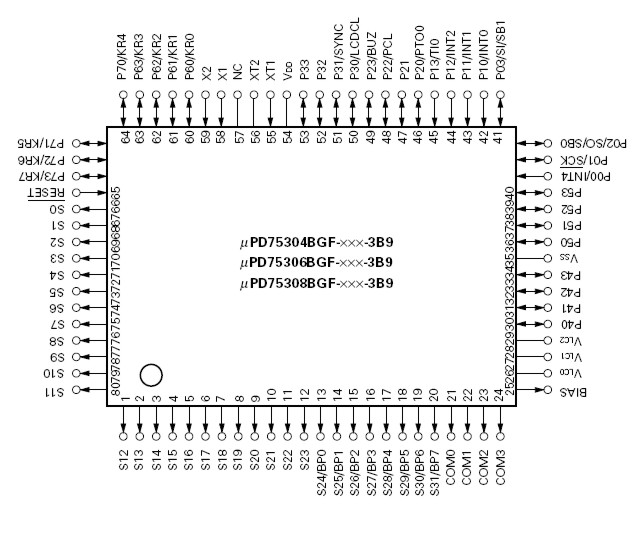

D75308GF-J22 PIN DATA

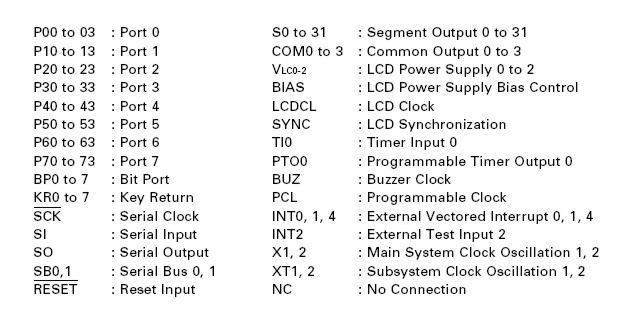

D75308GF-J22 PIN DATA SIGNALS

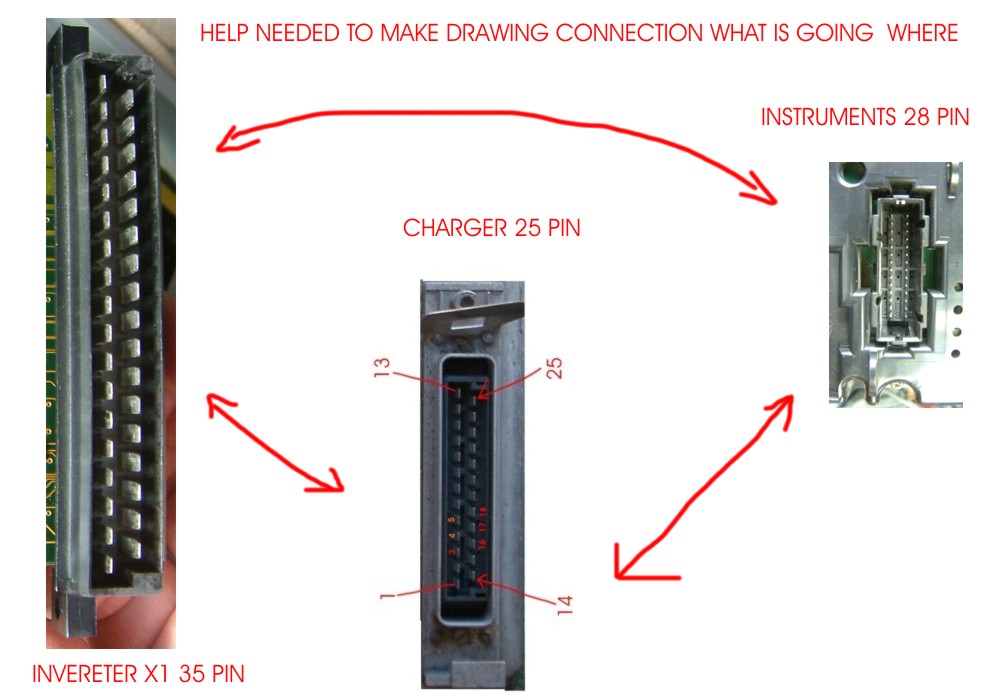

HOW TO CONNECT THIS BACK PANEL CONNECTOR WITH CHARGER AND INVERTER?

GOLF A3 ELECTRIC INSTRUMENTS BACK CONNECTOR


THIS WILL TAKE ME A LOT OF TIME.

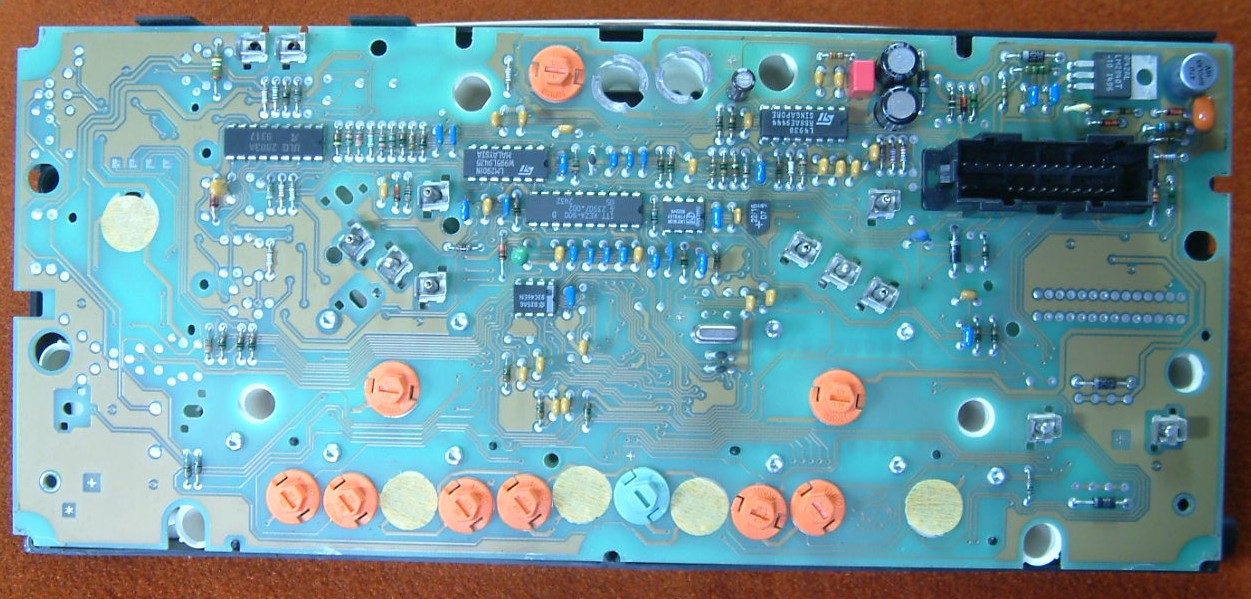

LIST OF USED INTEGRAL CIRCUIT  AND DATA SHEET FROM OTHER SIDE AS PDF FILE LINK BELOW

L4938 - ADVANCED VOLTAGE REGULATOR

LM2901N - LOW POWER QUAD VOLTAGE COMPARATOR

LM2903N - LOW POWER DUAL VOLTAGE COMPARATORS

LM2904T - LOW POWER DUAL OP-AMP

LM2940T - LOW DROPOUT REGULATOR

ULQ2803A - HIGH VOLTAGE, HIGH CURRENT EIGHT DARLINGTON ARRAYS. Continuouss load current ratings to 500 mA for each of the drivers.

93C46E - 1024-Bit Serial CMOS EEPROM (MICROWIRE Synchronous Bus)

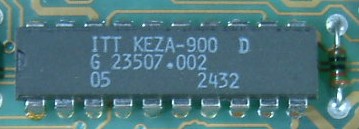

ITT-KEZA-900 D - WORKING SOMETHING WITH RPM METER, CONTROLLING WEBASTO HEATING or DIESEL HEATER...

UKNOWN IC

ITT KEZA-900 D

G 23507.002

ITT KEZA-900 D

 NEED URGENT DATA SHEET FOR ITT KEZA 900 D




Regards
Rudolf Bosnjak





Best regards

Rudolf Bosnjak

May 2007 year.
