VW Golf Citystromer, tipo 1HX0E, Hatchback, Electric-Motor, 0 ccm, 20 KW, 27 HP, 100 kmph, 1994 to  1997

Dear friends WORLDWIDE,

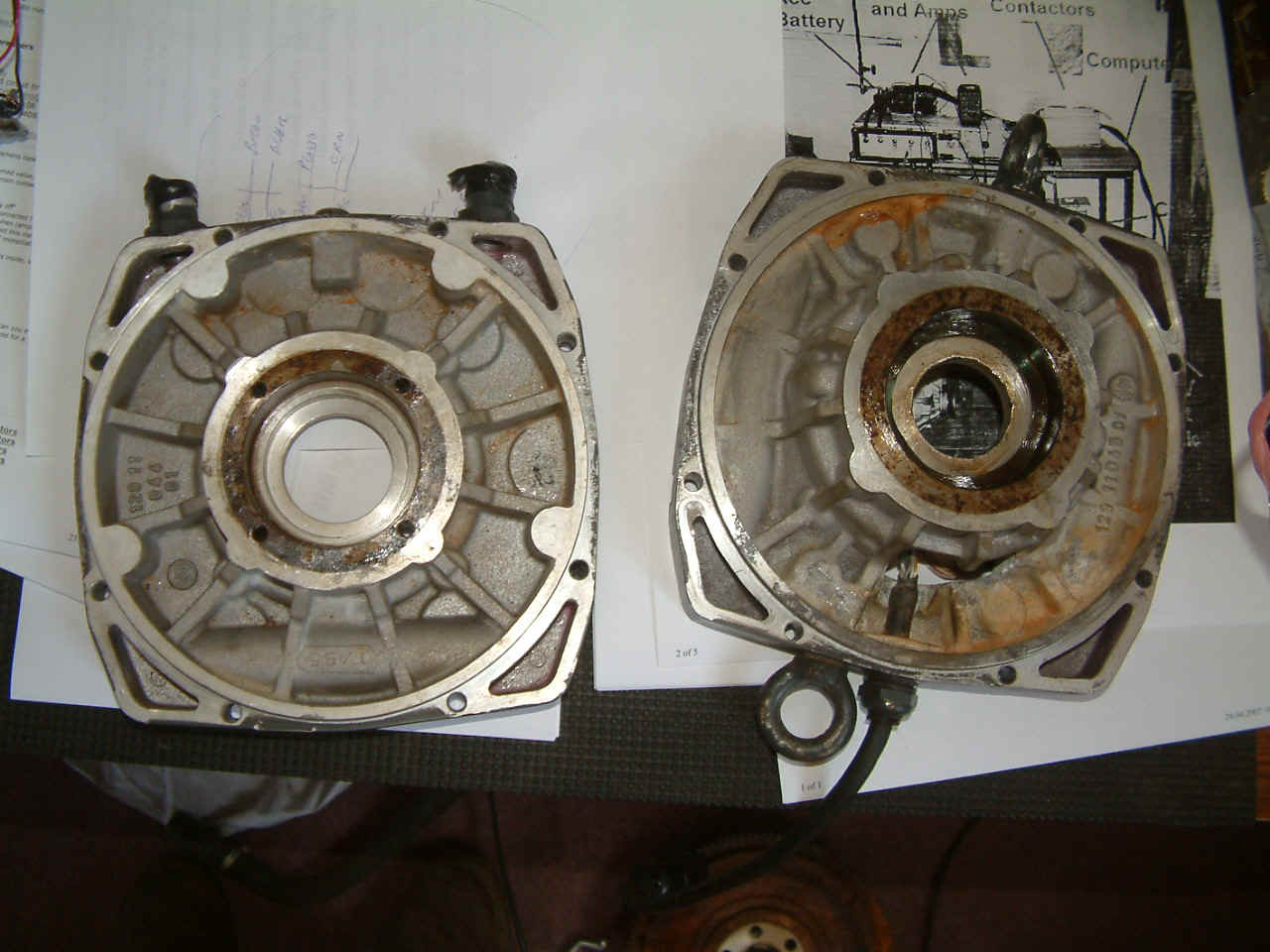

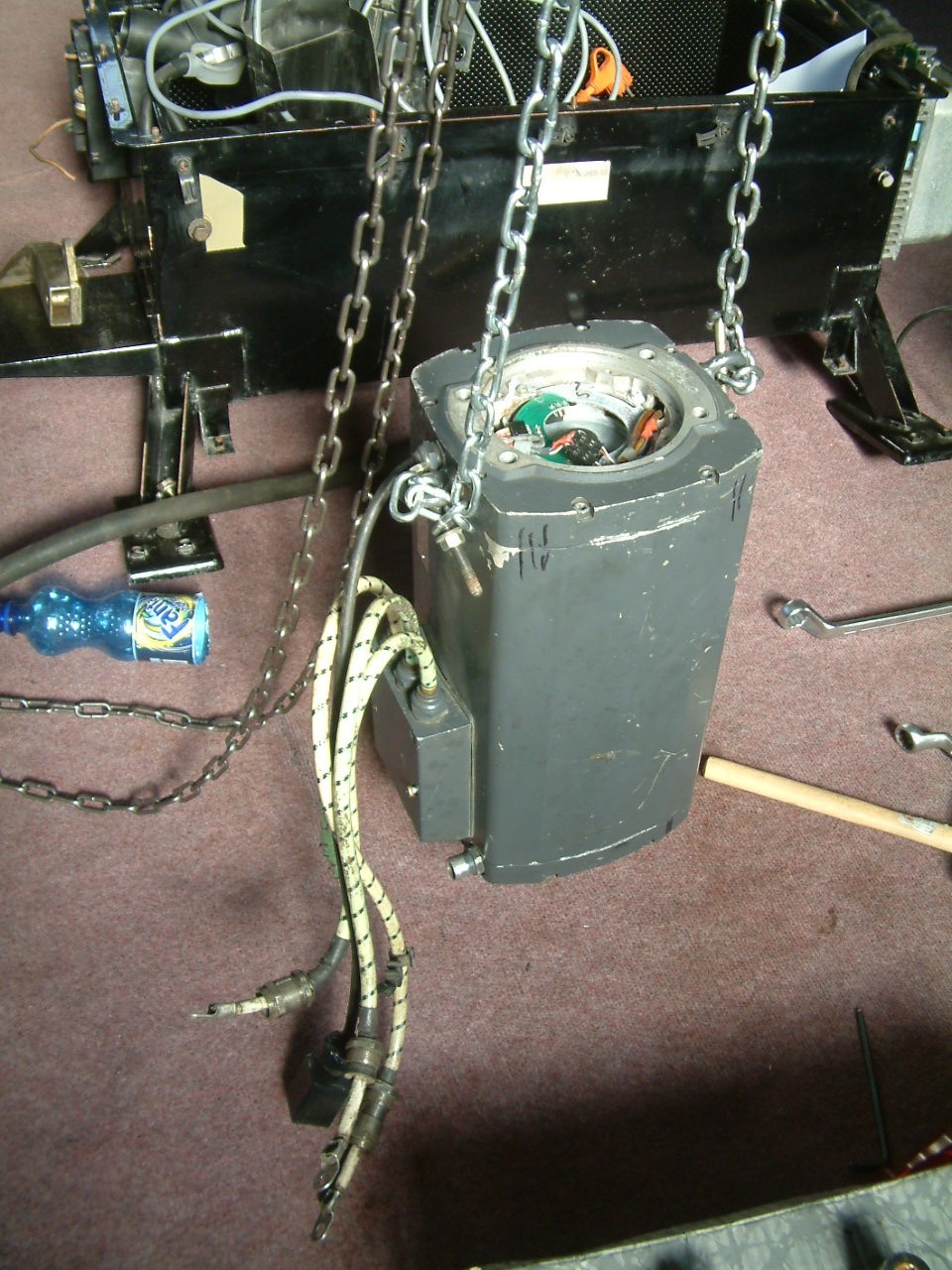

SEE HERE ALL IMAGES HOW I REPAIR SIEMENS ELECTRIC MOTOR FROM GOLF 3



THIS MOTOR HAS FAULTY BEARINGS, I REPLACE THEM AND NOW MOTOR WORKING OK.

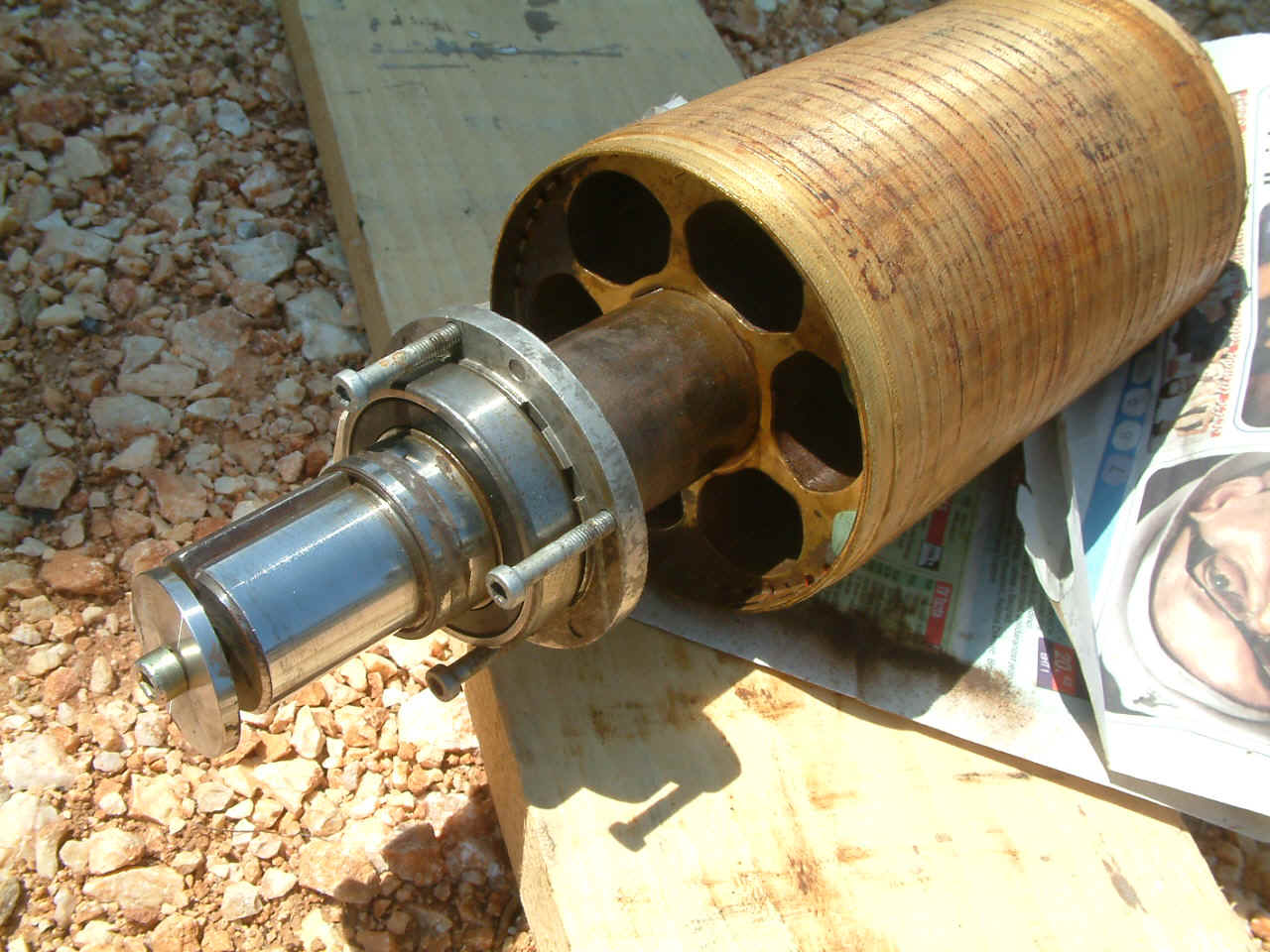

ROTOR CONSTRUCTION

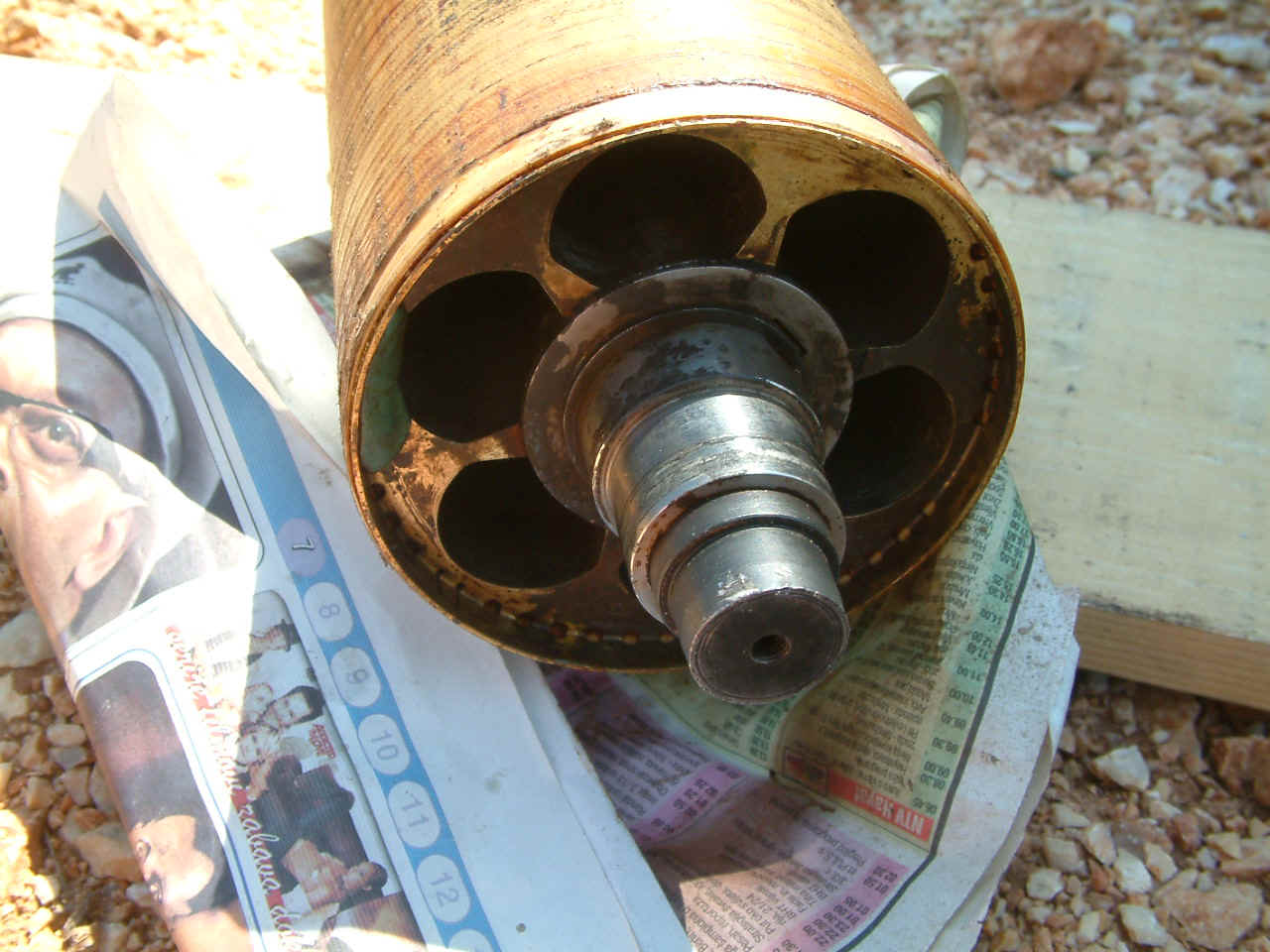

ROTOR HAS PERMANENT MAGNETS AROUND

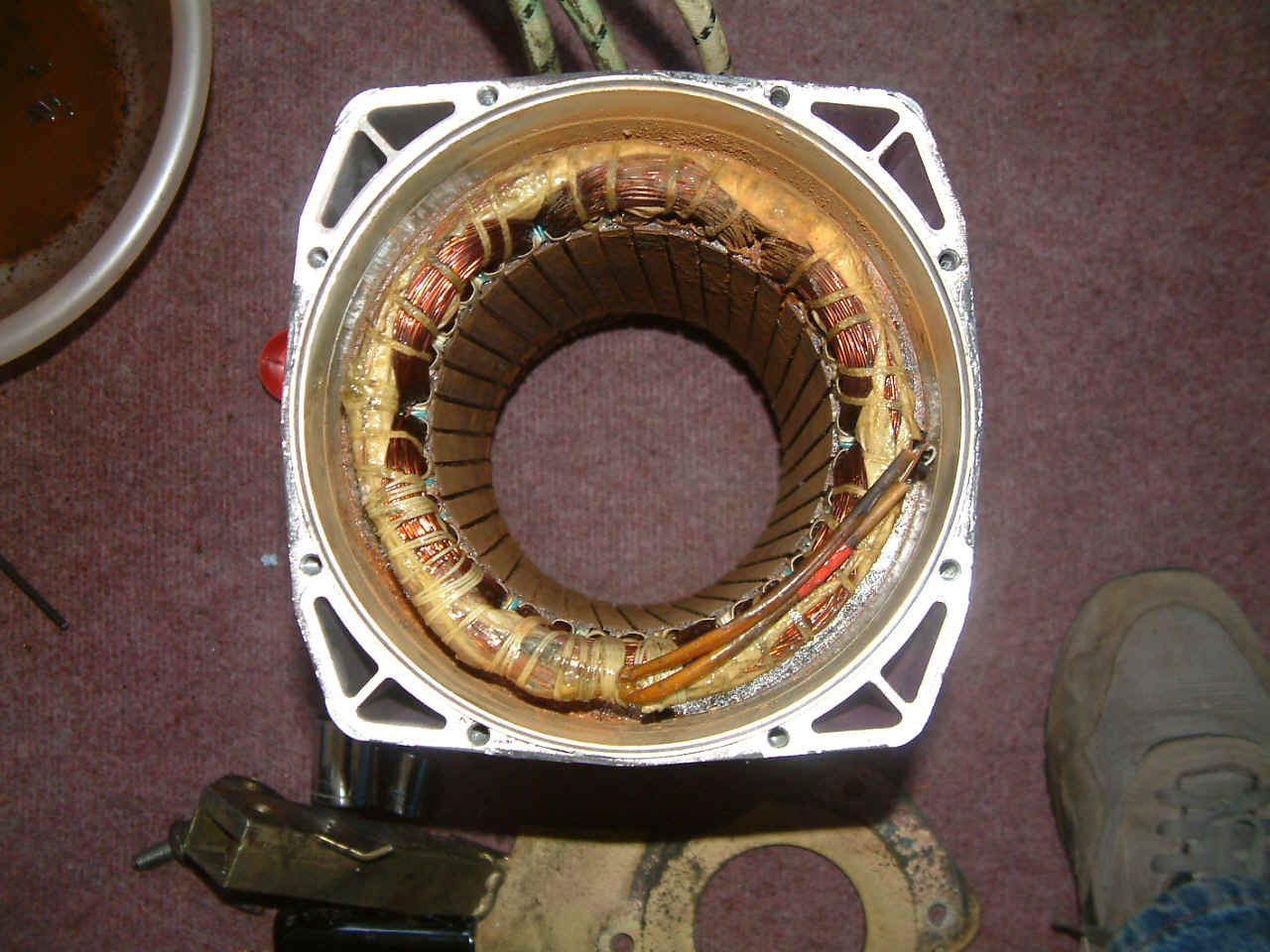

STATOR FROM INSIDE





Regards
Rudolf Bosnjak  CONTACT DATA WITH ME IS HERE





Best regards

Rudolf Bosnjak

May 2007 year.
