EAGLE II - CB radio - Transceiver

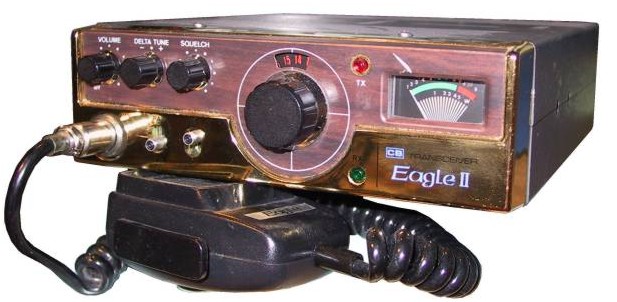

EAGLE II FRONT VIEW

Click the above photo to see a larger photo.

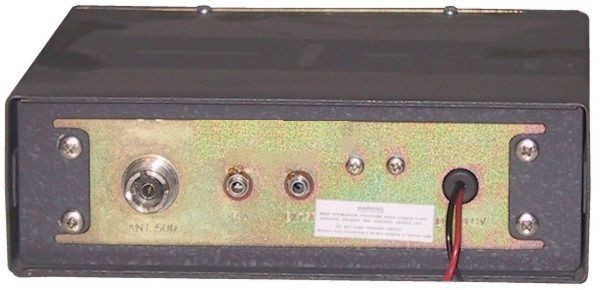

EAGLE II BACK



This was my first "NEW" CB RADIO.

Owner   Rudolf  Bosnjak  - T94RB, Sarajevo, Bosnia and Herzegovina.

Type: Citizen band transceiver
Frequency range: 26.965-27.255 MHz
Channels: 23
Mode: AM
Frequency control: XTAL-synthesis
Power output: 3.5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max ? A
TX: Max ? A
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: 197x-197x
Other:
Related documents:
The CB-band is usually allocated to the segment of 26.965-27.405 (most countries where CB is allowed) divided into 40 channels.

There are different restrictions as to which mode and power output to use. In most european countries, AM, FM and SSB were used until recently.

The so called "freeband" is just about everything between 27.410 and 28.000, plus a 40 channel segment below 26.965. In these segments, many unlicensed individuals do their DX-ing, mainly on SSB.

Of course the legal use of these segments is probably extremely low, and therefore all this "freebanding", or maybe it is the other way around? There are quite a number of CB radios manufactured with the possibility of extended frequency coverage.
