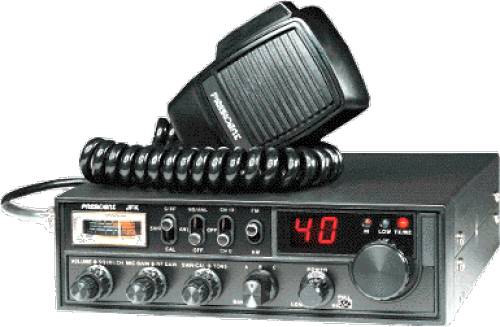

PRESIDENT JFK - CB radio - Transceiver

PRESIDENT JFK

Click the above photo to see a larger photo.

                                                        Slika oko 1980 do 1984 godine.

Moj automobil Zasatava 101 i velika fiberglas 5/8 cb antena na krovu na zadnjoj krivina puta na vrh Trebevića i grupa cebejaša u njemu, Rudi-Kasper, Mario-Baltazar, Davor i još dvojica, ali se ne mogu sjetit imena. Ako se neko sjeća ove grupe napiši detalje u komantar da dodam.


The photo dates from around 1980 to 1984.
My Zastava 101 car—with a large 5/8 fiberglass CB antenna on the roof—parked at the final bend of the road near the summit of Trebević, and a group of CB enthusiasts inside: Rudi-Kasper, Mario Baltazar, Davor, and two others whose names I can not recall. If anyone remembers this group, please write the details in the comments so I can add them.

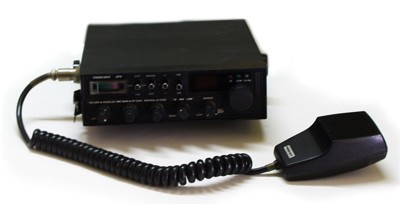

PRESIDENT JFK - CB RADIO STANICA PRESIDENT JFK - CD RADIOSTANICA

Owner   Rudolf  BoŠnjak -E71RB, Sarajevo, Bosnia and Herzegovina.

Type: Citizen band transceiver
Frequency range: 26.965-27.405 MHz
Channels: 120
Mode: AM/FM
Frequency control: PLL
Power output: 0.5W  - 45W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max ? A
TX: Max ? A
Dimensions (W*H*D): 174*52*211 mm
Weight:
Manufactured: 19xx-19xx
Other:
Related documents:


The CB-band is usually allocated to the segment of 26.965-27.405 (most countries where CB is allowed) divided into 40 channels.

There are different restrictions as to which mode and power output to use. In most european countries, AM, FM and SSB were used until recently.

The so called "freeband" is just about everything between 27.410 and 28.000, plus a 40 channel segment below 26.965. In these segments, many unlicensed individuals do their DX-ing, mainly on SSB.

Of course the legal use of these segments is probably extremely low, and therefore all this "freebanding", or maybe it is the other way around? There are quite a number of CB radios manufactured with the possibility of extended frequency coverage.

HOW TO MODIFICATE PRESIDENT CB-RADIOS  http://members.tripod.com/~Malzev/cb-radio/index.htm

MODIFICATION FOR PRESIDENT JFK  http://members.tripod.com/~Malzev/cb-radio/jfk_.htm

WINScanner Software http://members.tripod.com/~Malzev/radiodoc/software.htm
