Oscilloscope Philips PM 3311

The Oscilloscope Philips PM 3311 Digital Storage  is a portable, two channel 60 MHz measuring instrument featuring mico-processor controlled electronic circuits. A compact ergonomic design facilitates the extensive measuring capabilities of the instrument. Furthermore, a large 8cm x 10cm screen with illuminated graticule lines provides for easier viewing, a 10 kV accelerating potential giving a high-intensity trace with a well-defined spot. The oscilloscope is provided with numerous integrated circuits, which ensure stable operation and reduce the number of adjusting points.

• • Bandwidth: 60 MHz
• • Analog Channels: 2
• • Operating System: Embedded
• • Form Factor: Benchtop
• The
  Philips PM 3311 is a dual-channel, 60 MHz digital storage oscilloscope (DSO) known for its durability and advanced features for its time, such as pre-trigger view and memory backup.

  Key Specifications


  Feature

  	Specification	Source
  Type	Digital Storage Oscilloscope (DSO), Benchtop form factor
  Channels	2 Analog Channels
  Bandwidth	60 MHz
  Max Sample Rate	125 MS/s (for the fast version, the PM3310 was 50 MS/s)
  Display	8 cm x 10 cm CRT screen with illuminated graticule, 10 kV accelerating potential
  Vertical Sensitivity	2 mV/div to 10 V/div
  Horizontal Time Base	0.5 s/div to 0.5 µs/div
  Memory	Digital storage with accumulator memory and 3 additional registers for signal storage
  Features	Microprocessor-controlled, pre-trigger view, dot-join mode, optional IEC/RS232 interfaces
  Power Supply	100-120 V ±10% or 220-240 V ±10%, 50-400 Hz frequency
  Power Consumption	< 70 W
  Dimensions (approx)	315mm (W) x 160mm (H) x 545mm (L)
  Weight	~12 kg



Owner   Rudolf  Bošnjak  - E71RB, Sarajevo, Bosnia and Herzegovina...

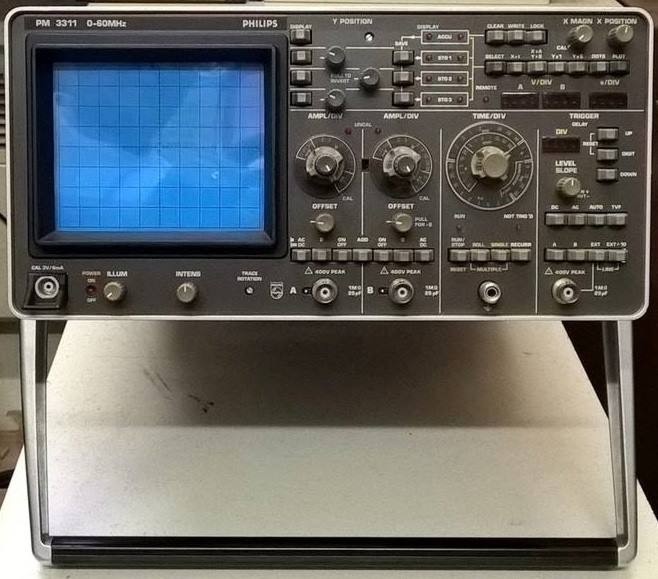

Click above photo to see a larger photo.
