Switch Mode Power Supply for IRIS 8 computer
What you can see here is Rudolf Bosnjak complete design.

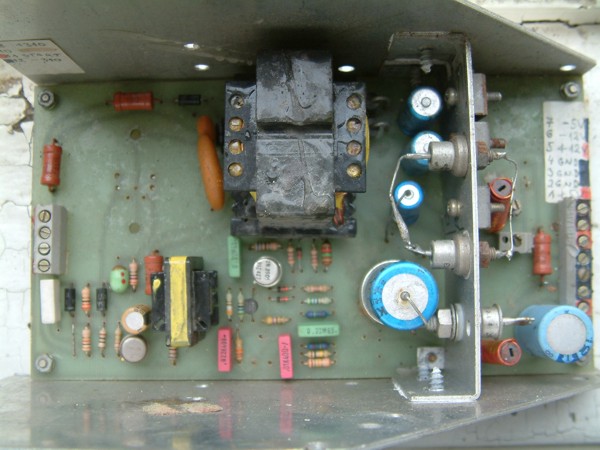

SMPS FIRST WORKING UNIT FOR PERFORMANCE TESTING
| Input: | AC 220V |
| Ouput: | +5V/5A |
| +12V/2A | |
| -5V/1A | |
| -12V1A |
I
ORIGINAL WORKING MODELS
ORIGINAL WORKING MODELS
Here is visible Switch Mode Power Supply, ready prototype for IRIS 8 PC computer for industrial prouction.
Switch Mode Power Supply for IRIS

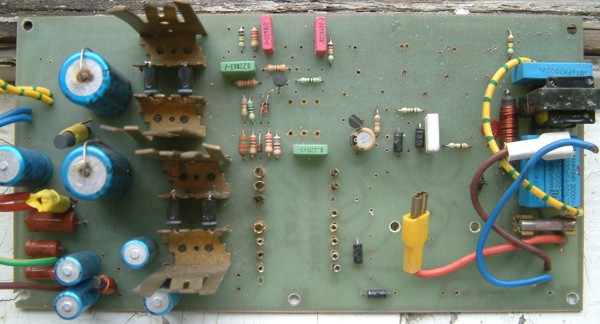

8 element side first working unit without transformer.

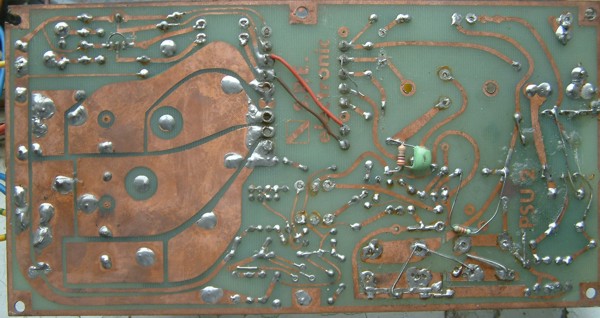

Switch Mode Power Supply for IRIS 8 soldering side first working unit

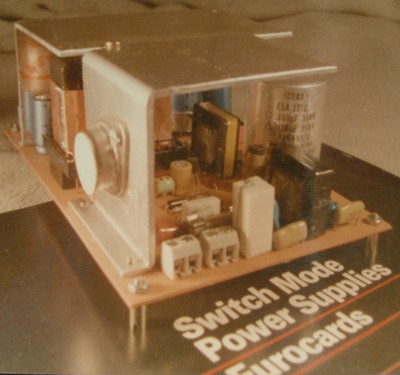

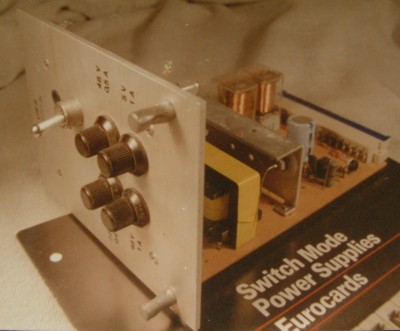

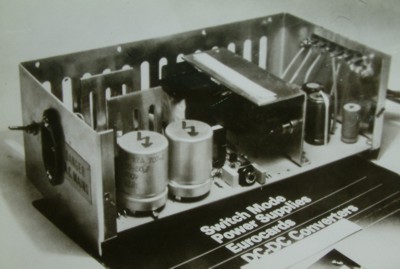

Switch Mode Power Supply as EURO CARD
| Input: | AC 220V |
| +48V | |
| Ouput: | +5V/4A |
| +12V/1A | |
| -5V/0.5A | |
| -12V0.5A |

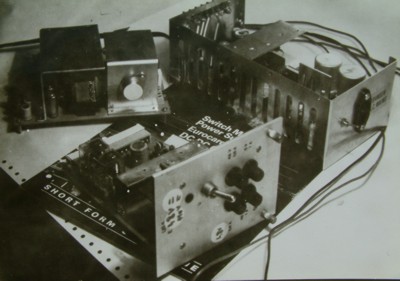

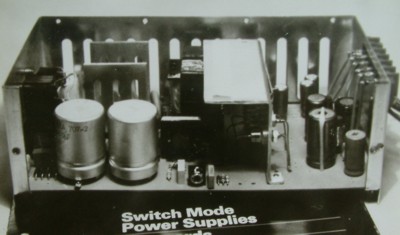

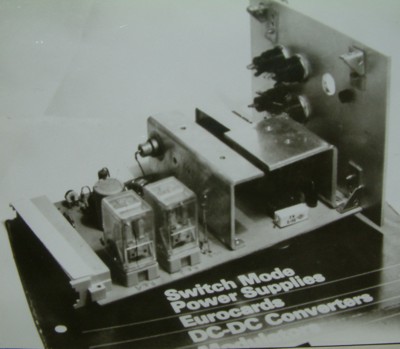

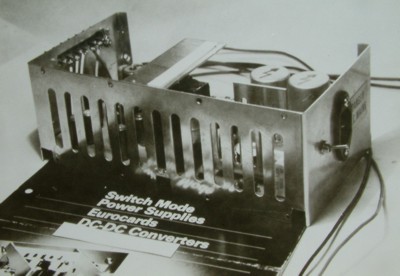

Rack models
All devices on all images are my personal and complete design.

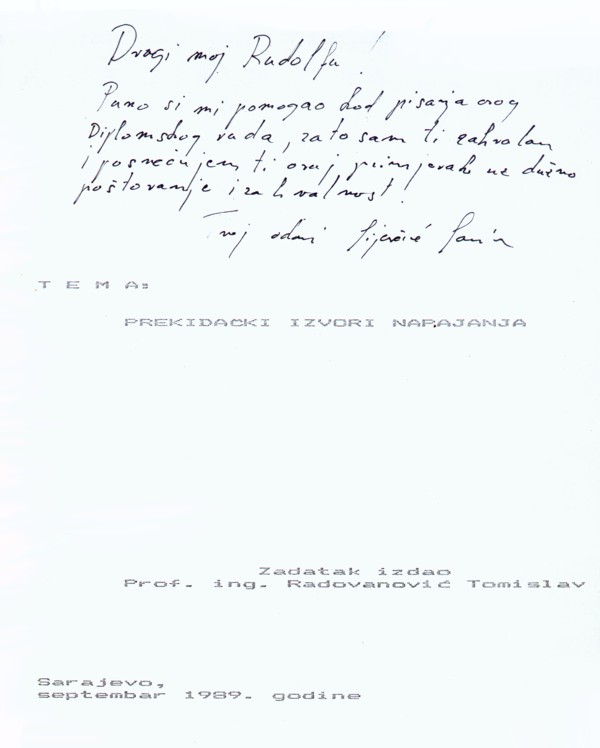

Some words from Mr. Sijercic Sanin for my contribution to his work.

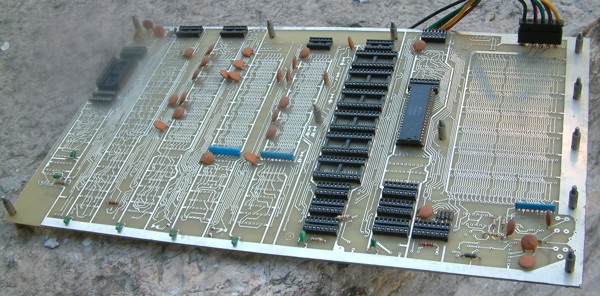

IRIS 8 COMPUTER MOTHERBOARD
This is MAIN BOARD IRIS 8 computer was hard work of Branislav Stupar and Andreja Markovic and few others PEOPLE THAT I CAN NOT REMEBER NAME.
Owner Rudolf Bosnjak - T94RB, Sarajevo, Bosnia and Herzegovina.
